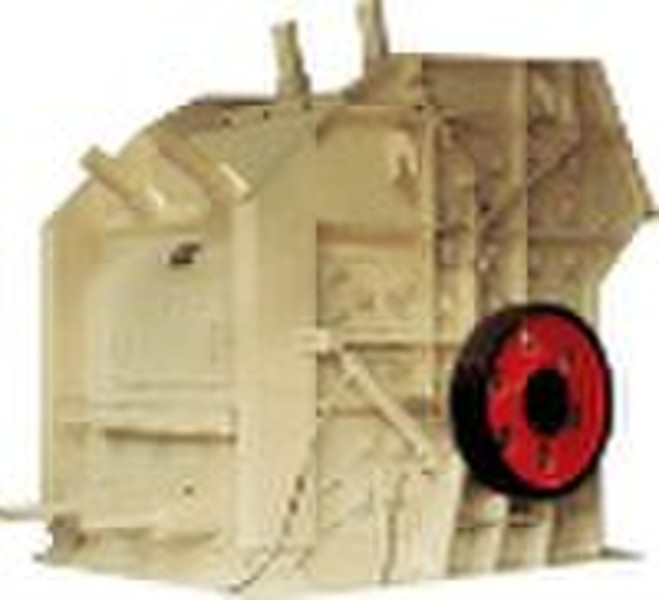

Impact crusher

Impact crusher Impact crushers is optimized and widely applied in the first and secondary crushing. It can crush material like granite, basalt, bluestone, etc and anti-pressure strength is not more than 320Mpa, and the final product is ideal device for aggregation used in highway and railway surface as well as water and electricity industry. Our Impact Crusher with crushing & shaping functions is a new design which aim to improve the grade of finished products. Compared with normal Impact Crusher, the final products are in excellent cubic shape, the quantity of neddle-like shape and flake-like shape can be reduced 8%, and the energy consumption can be reduced 40%, especially better for processing high quality construction materials. Technical parameter model Feed opening(mm)Max Feed Size (mm)final product (mm)Process Capacity(m3/h)Rotor Speed(r/min)Motor Power (kw)Weight(T)DimensionsL×W×H(mm)PF-808Z780×47510040-7025-37.5760556.82060×1762×1830PF-1210Z1080×48515040-8040-7069090143100×2300×260PF-1214Z1430×36520040-9080-110550132193780×2670×2830PF-1315Z1520×53525040-100100-16052516023.54035×2810×3150PF-1520Z2030×74530040-120120-220450250353823×3676×3174
